5060  RGBW40W
5060  RGBW40W
5060 RGBW40W
Product Features:
1、LM-80 certified
2、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
Product application:
Widely used for Outdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX5060RGBW40W60001

15

40

1000

2500

2.6

620-630

/

100-120

3.6

520-530

/

230-250

3.6

450-455

/

40-60

3.6

6000

≥60

260-280

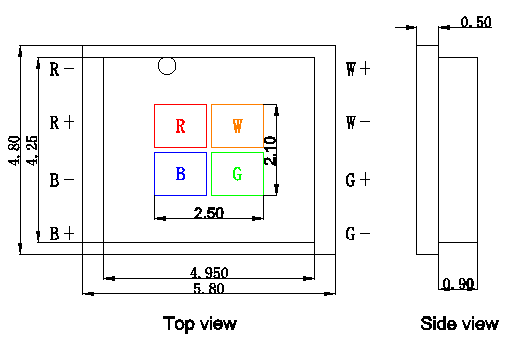

Product dimensions

          5060  RGBW40W

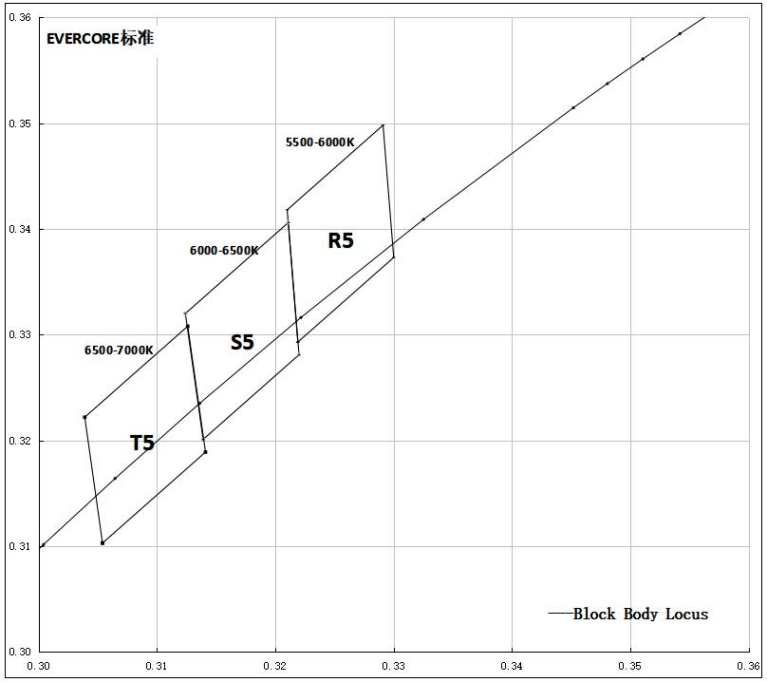

White bins on CIE-1931

5060  RGBW40W


Temperature Vs Lume:

      5060  RGBW40W

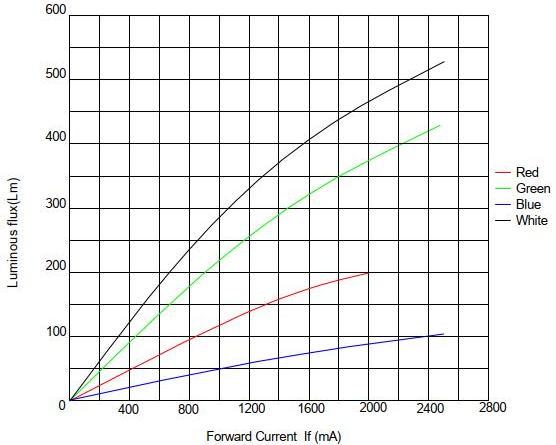

Current Vs Lumen:

  5060  RGBW40W

                                        5060 RGBW40W

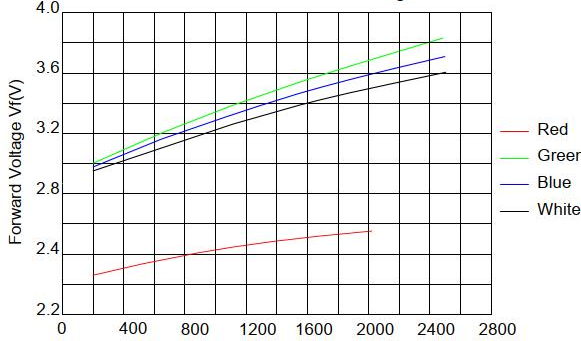

Voltage Vs Current:



   5060  RGBW40W

                                          5060 RGBW40W
