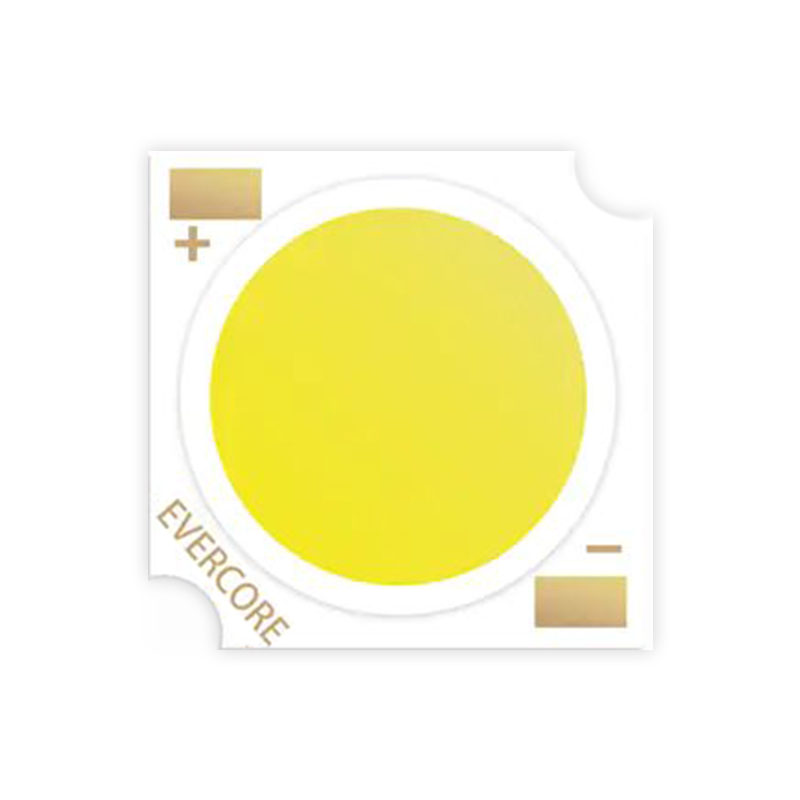

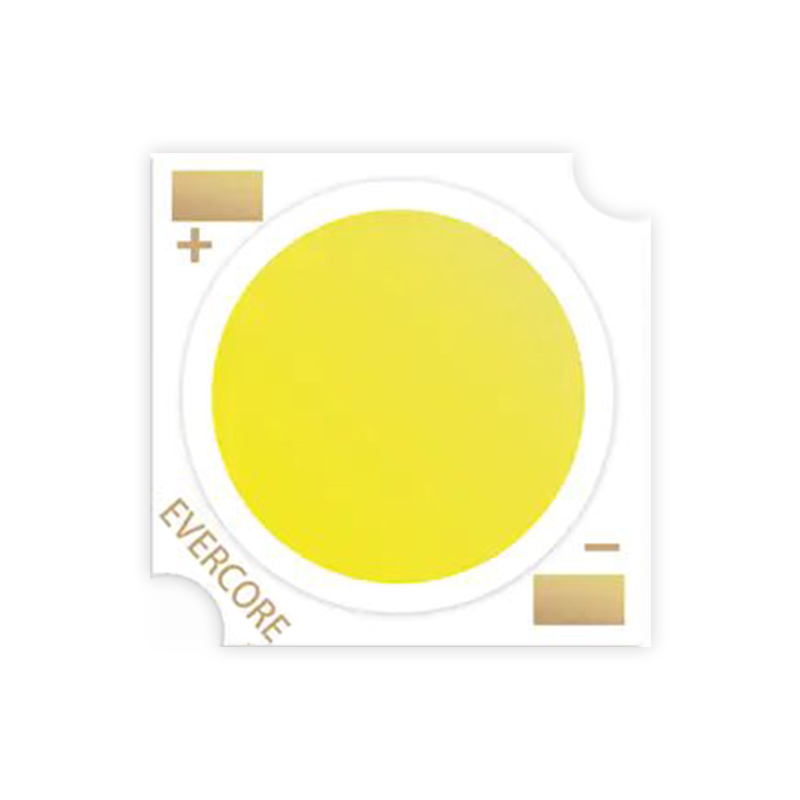

BH1917-S

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞80 or 90
3、Light efficiency: 175lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
BH1917-0612 J18W**-SV3	Φ15	18	540	1380	36	≥80	175	3402
						≥90	149	2896
BH1917-0812 J24W**-SV3	Φ15	24	720	1840	36	≥80	175	4536
						≥90	149	3862
BH1917-1012 J30W**-SV3	Φ15	30	900	2300	36	≥80	170	5508
						≥90	144	4665

Product dimensions：

BH1917-S

White bins on CIE-1931：

Temperature Vs Lume：

BH1917-S

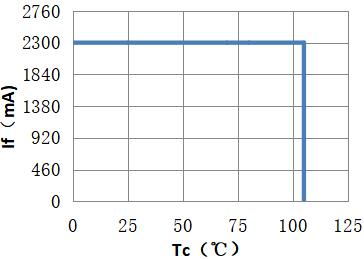

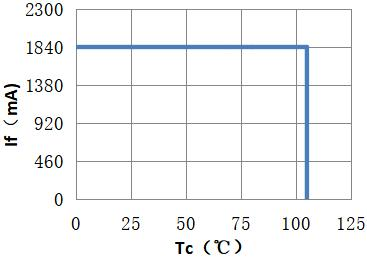

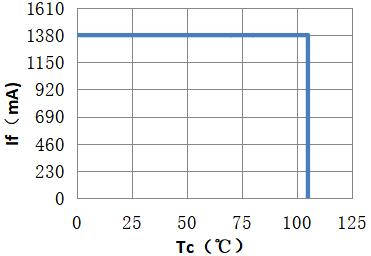

TC VS IF curve：

BH1917-S

BH1917-0612 BH1917-0812 BH1917-1012

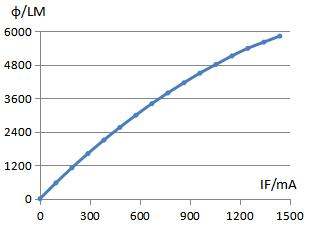

Current Vs Lumen：

BH1917-S

BH1917-0612 BH1917-0812 BH1917-1012

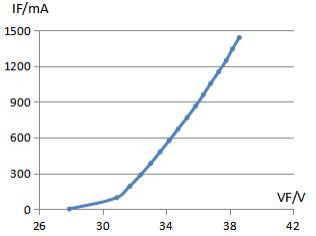

Voltage Vs Current：

BH1917-S

BH1917-0612 BH1917-0812 BH1917-1012
