BH16105-HD

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞90
3、Ultra high power density, high central light intensity
4、Ultra-small substrate size, enabling small angle optical distribution within 10°
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
BH16105-0612 J25W*H-V2	Φ8	25	700	1050	36	3000	≥90	110
						4000	≥90	120
						5700	≥90	120

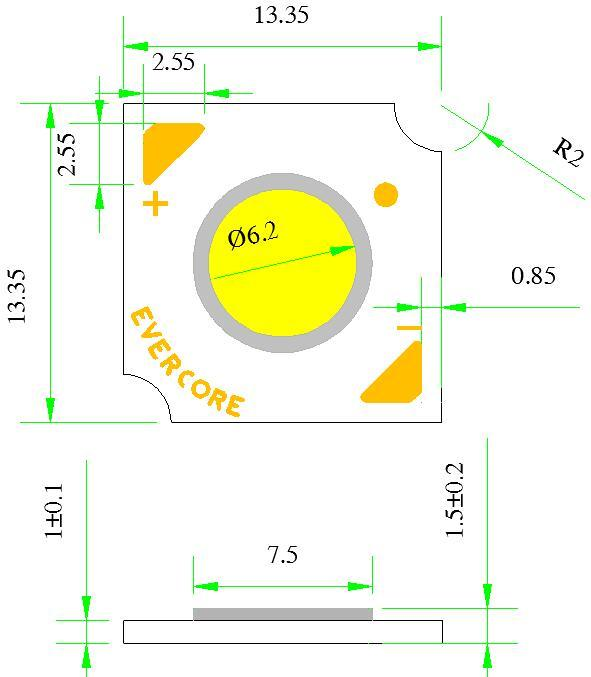

Product d mensions：

BH16105-HD

White bins on CIE-1931：

BH16105-HD

Temperature Vs Lume：

BH16105-HD

TC VS IF curve：

BH16105-HD

BH16105-0612

Current Vs Lumen：

BH16105-HD

BH16105-0612

Voltage Vs Current：

BH16105-HD

BH16105-0612
