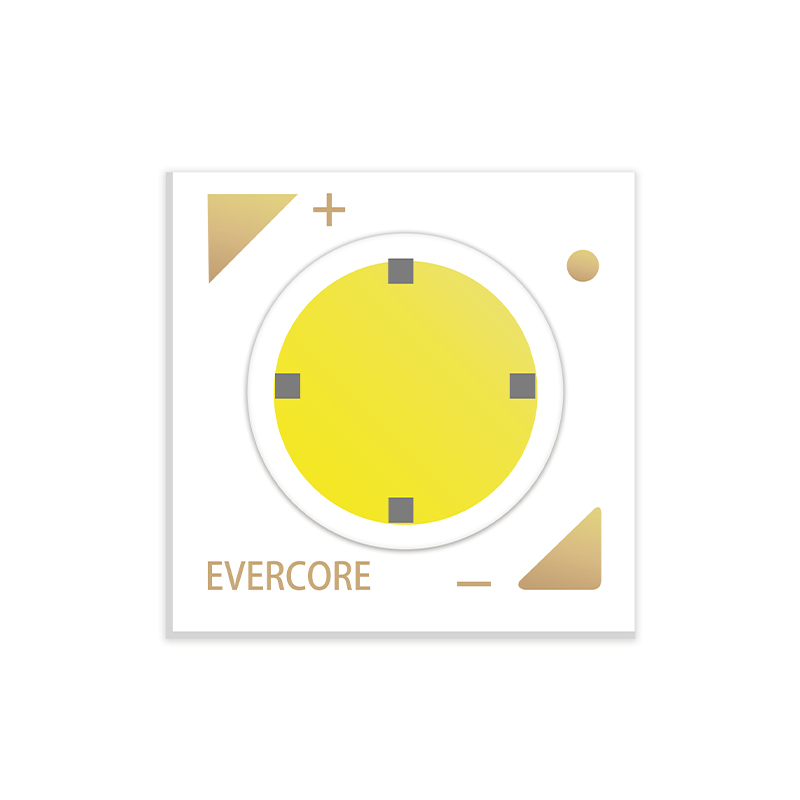

HC1380

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞ 90
3、Light efficiency：130lm/W(@3000K 90Ra)
4、Constant voltage input, automatic constant current, a single power supply to drive multiple sets of parallel lamps
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Voltage Min (V)	Voltage Max (V)	CCT (K)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
HC1308-0407 J7W*H-KV4	Φ6	7	24	27	2700	≥90	105	735
					3000	≥90	110	770
					4000	≥90	115	805
HC1308-0407 J9W*H-KV4	Φ6	9	24	27	2700	≥90	100	900
					3000	≥90	105	945
					4000	≥90	110	990

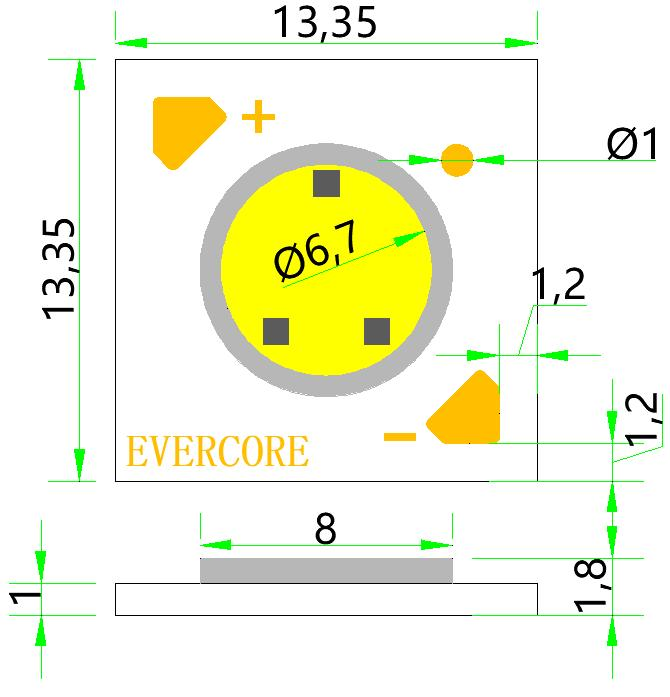

Product dimensions：

HC1380

White bins on CIE-1931：

HC1380

Temperature Vs Lume：

HC1380

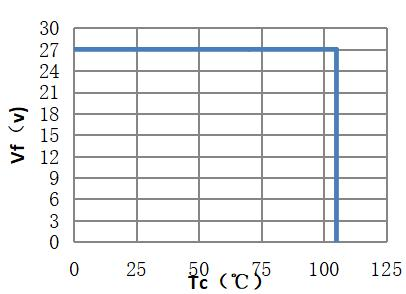

TC VS IF curve：

HC1380 HC1380

HC1308-0407J7W HC1308-0407J9W

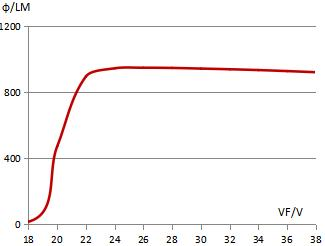

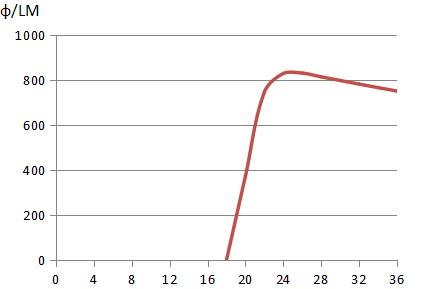

Current Vs Lumen：

HC1380 HC1380

HC1308-0407J7W HC1308-0407J9W

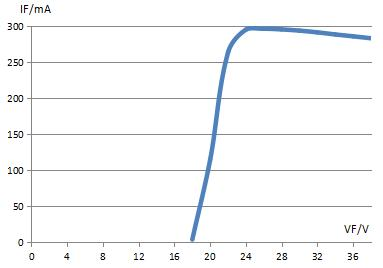

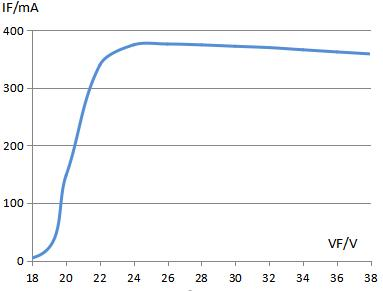

Voltage Vs Current：

HC1380 HC1380

HC1308-0407J7W HC1308-0407J9W
