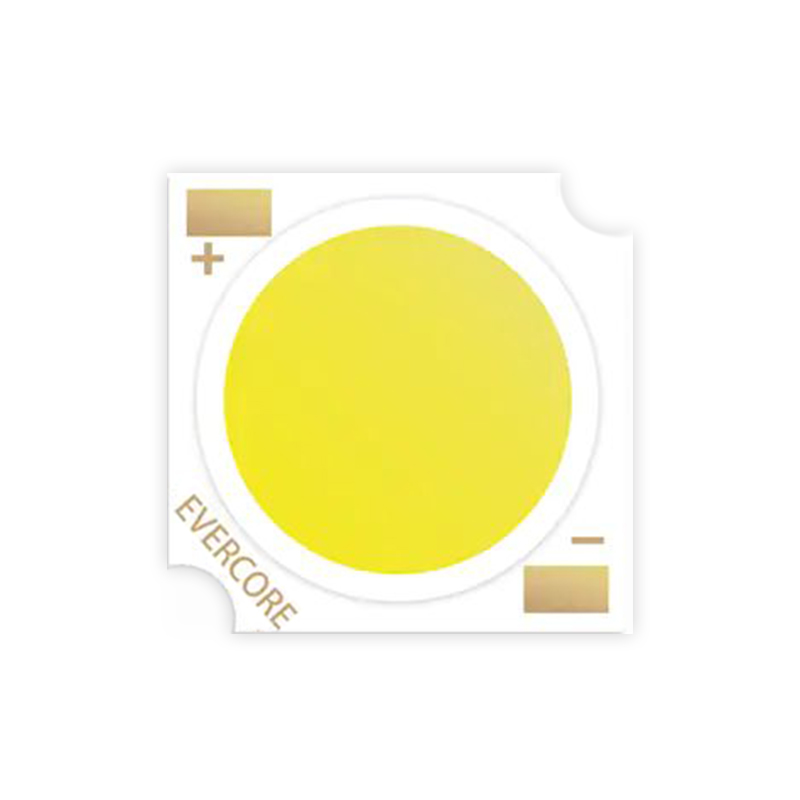

FH1311-Y

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞80 or 90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
FH1311-0312 J12W**-YV3B	Φ9	9	270	690	36	≥80	161	1564
						≥90	137	1331
FH1311-0412 J15W**-YV3B	Φ9	12	360	920	36	≥80	161	2086
						≥90	137	1775

Product dimensions：

FH1311-Y

White bins on CIE-1931：

FH1311-Y

Temperature Vs Lume：

FH1311-Y

TC VS IF curve：

FH1311-Y

FH1311-0312 FH1311-0412

Current Vs Lumen：

FH1311-Y

FH1311-0312 FH1311-0412

Voltage Vs Current：

FH1311-Y

FH1311-0312 FH1311-0412
