Home > Products > Multi color temperature COB > Dual Color Temperature Series > Dual Color Temperature Series - Constant Current Edition

CK1308-SV4

Product Features:

1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra＞90
4、Light efficiency: 130lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment

Product application:

Widely used for high-end hotels, smart homes, high-end commercial space and other places

Product Introduction

Related recommendations

Model Number
LES
(mm)
Power
(W)
Current Typ
(mA)
Current Max
(mA)
Voltage
(V)
CCT
(K)
CRI
（Ra）
Light efficiency
(lm/W)
CK1308-0212
J6WLSH-SV4
Φ6
6
160
400
36
2700
≥90
110
6
160
400
36
6000
≥90
130

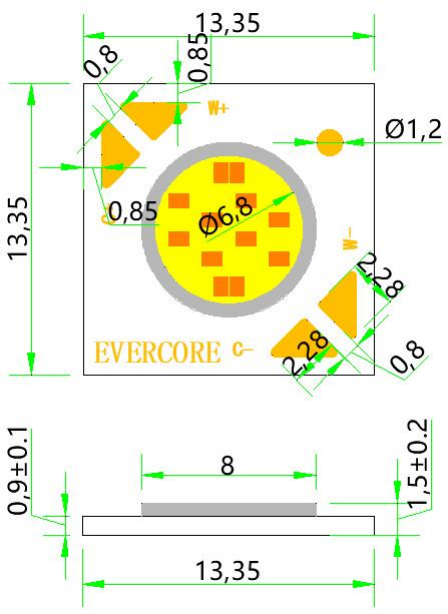

Product dimensions：

CK1308-SV4

White bins on CIE-1931：

CK1308-SV4

Temperature Vs Lume：

CK1308-SV4

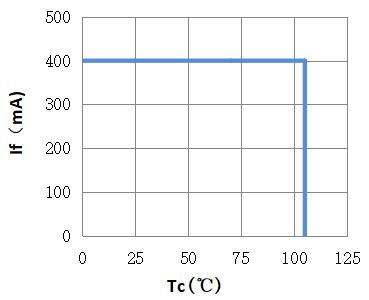

TC VS IF curve：

CK1308-SV4

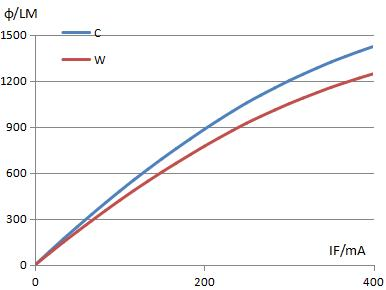

Current Vs Lumen：

CK1308-SV4

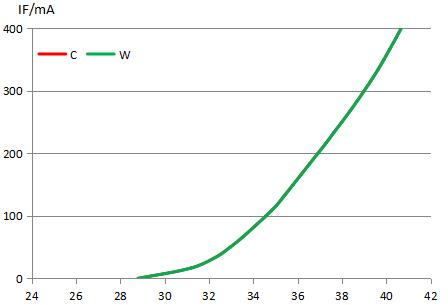

Voltage Vs Current：

CK1308-SV4
