Home > Products > Multi color temperature COB > Dual Color Temperature Series > Dual Color Temperature Series - Constant Voltage Edition

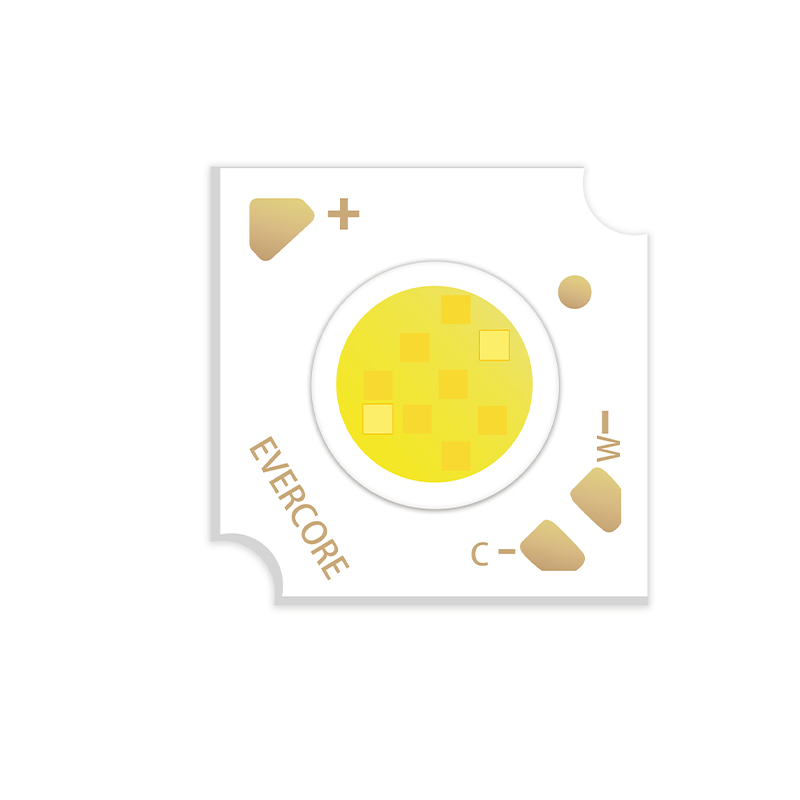

HK1375-V4

Product Features:

1、LM-80 certified
2、CCT tunable range from 2700K to 6000K
3、Ra＞90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、24/48V constant voltage input, automatic constant current

Product application:

Widely used for high-end hotels, smart homes, high-end commercial space and other places

Product Introduction

Related recommendations

Model Number

LES
(mm)

Power
(W)

Voltage Min
(V)

Voltage Max
(V)

CCT

(K)

CRI
（Ra）

Light efficiency
(lm/W)

HK1375-0207

K7WLSH-V4

Φ6

2700K

≥90

6000K

≥90

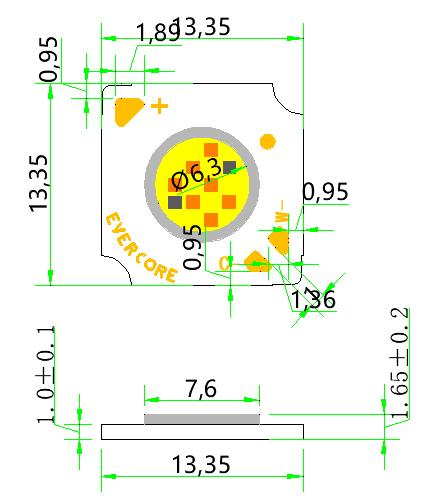

Product dimensions：

HK1375-V4

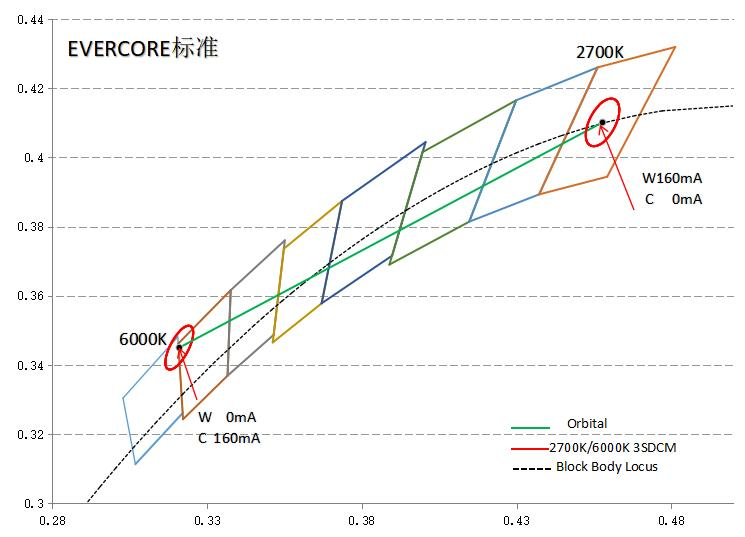

White bins on CIE-1931：

HK1375-V4

Temperature Vs Lume：

HK1375-V4

TC VS IF curve：

CK1611-SV3

Current Vs Lumen：

HK1375-V4

CK1611-SV3

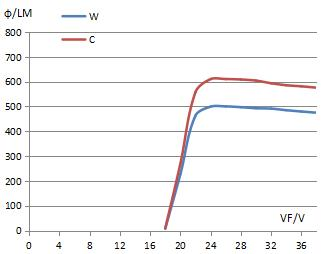

Voltage Vs Current：

HK1375-V4

CK1611-SV3
