BH1311-G4

Product Features:

1、The most advanced international color evaluation system standard
2、CRI＞ 97
3、Rf:96 , Rg:100
4、Light efficiency： 105lm/W
5、Excited by multi-wavelength blue LED chips , to supplement the 650nm long red light and 480nm long blue light band, more truly restore the color of the object
6、SDCM<2，high light color consistency

Product application:

Widely used for high-end Hotel, boutique museums, and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
BH1311-0512 J15W*S-G4	Φ9	15	450	900	36	2700	97	95
						3000		100
						4000		105
BH1311-0612 J18W*S-G4	Φ9	18	540	1080	36	2700	97	95
						3000		100
						4000		105

Product dimensions：

BH1311-G4

White bins on CIE-1931：

BH1311-G4

Temperature Vs Lume：

BH1311-G4

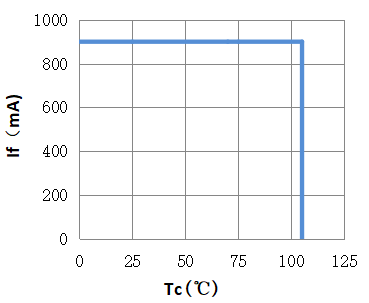

TC VS IF curve：

BH1311-G4

BH1311-0512 BH1311-0612

Current Vs Lumen：

BH1311-G4

BH1311-0512 BH1311-0612

Voltage Vs Current：

BH1311-G4

BH1311-0512 BH1311-0612
