BH1311-SG4
BH1311-SG4
BH1311-SG4
Product Features:
1、The most advanced international color evaluation system standard
2、CRI＞ 97
3、Rf:96 , Rg:100
4、Light efficiency： 120lm/W
5、Excited by multi-wavelength blue LED chips , to supplement the 650nm long red light and 480nm long blue light band, more truly restore the color of the object
6、SDCM<2，high light color consistency
Product application:
Widely used for high-end Hotel, boutique museums, and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
（Ra）

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

BH1311-0312

J9W*S-SG4

Φ9

9

270

690

36

2700K

97

110

3000K

115

4000K

120

BH1311-0412

J12W*S-SG4

Φ9

12

360

920

36

2700K

97

110

3000K

115

4000K

120



Product dimensions：

BH1311-SG4

White bins on CIE-1931：

BH1311-SG4

Temperature Vs Lume：

BH1311-SG4

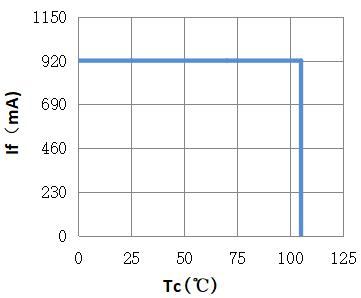

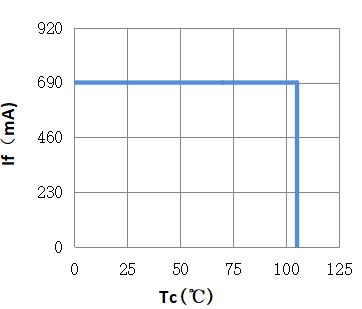

TC VS IF curve：

  BH1311-SG4              BH1311-SG4

                            BH1311-0312                                                                BH1311-0412

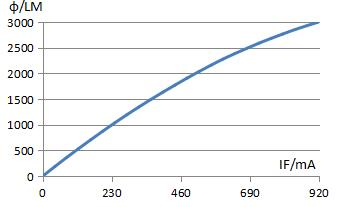

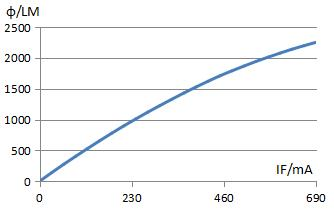

Current Vs Lumen：

       BH1311-SG4                    BH1311-SG4

                            BH1311-0312                                                                BH1311-0412


Voltage Vs Current：



       BH1311-SG4                         BH1311-SG4

                            BH1311-0312                                                                BH1311-0412
