BH1917-K

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞80 or 90
3、Light efficiency: 165lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
1205-K	Φ15	15	450	1150	36	≥80	165	2673
						≥90	140	2268
1206-K	Φ15	18	540	1380	36	≥80	166	3227
						≥90	141	2741
1207-K	Φ15	21	630	1610	36	≥80	166	3480
						≥90	141	2960
1208-K	Φ15	24	720	1840	36	≥80	166	4302
						≥90	141	3654
1210-K	Φ15	30	900	2300	36	≥80	162	5248
						≥90	138	4471

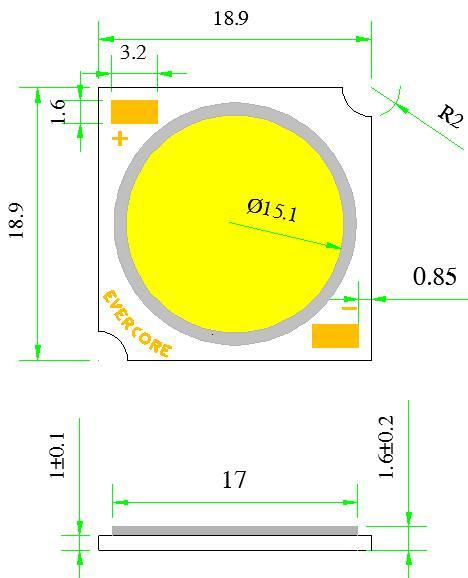

Product dimensions：

BH1917-K

White bins on CIE-1931：

Temperature Vs Lume：

BH1917-K

TC VS IF curve：

BH1917-K
BH1917-0512 BH1917-0612    BH1917-0712

BH1917-K

BH1917-0812 BH1917-0912

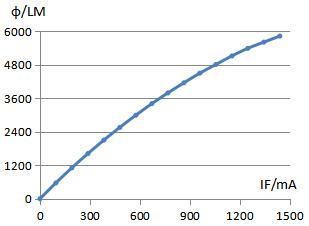

Current Vs Lumen：

BH1917-K
BH1917-0512 BH1917-0612   BH1917-0712

   BH1917-K

BH1917-0812 BH1917-0912

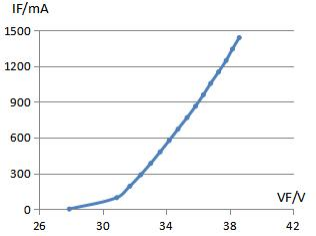

Voltage Vs Current：

BH1917-K
BH1917-0512 BH1917-0612   BH1917-0712

   BH1917-K

BH1917-0812 BH1917-0912
