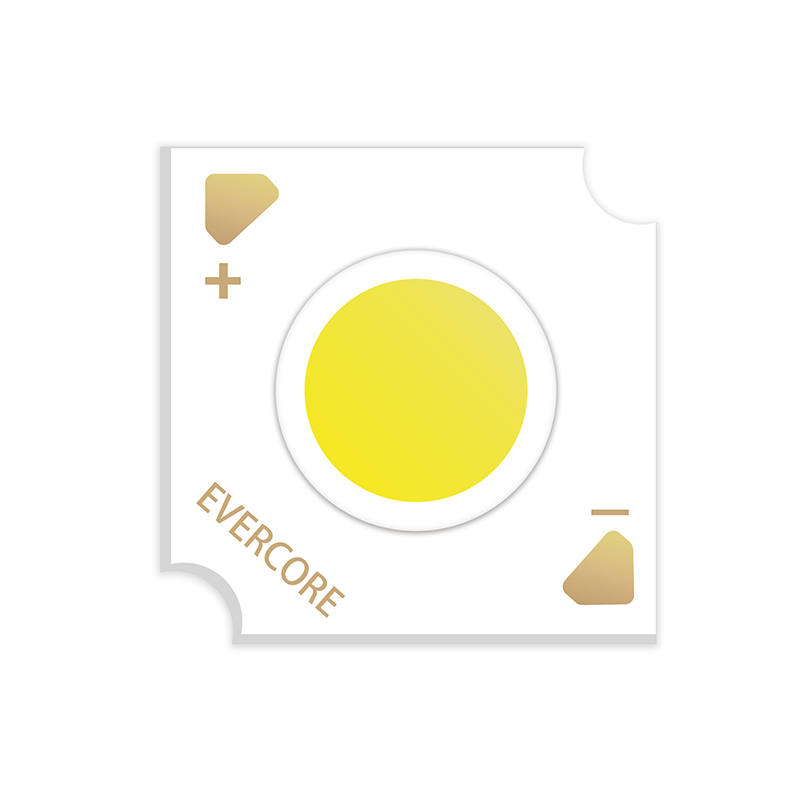

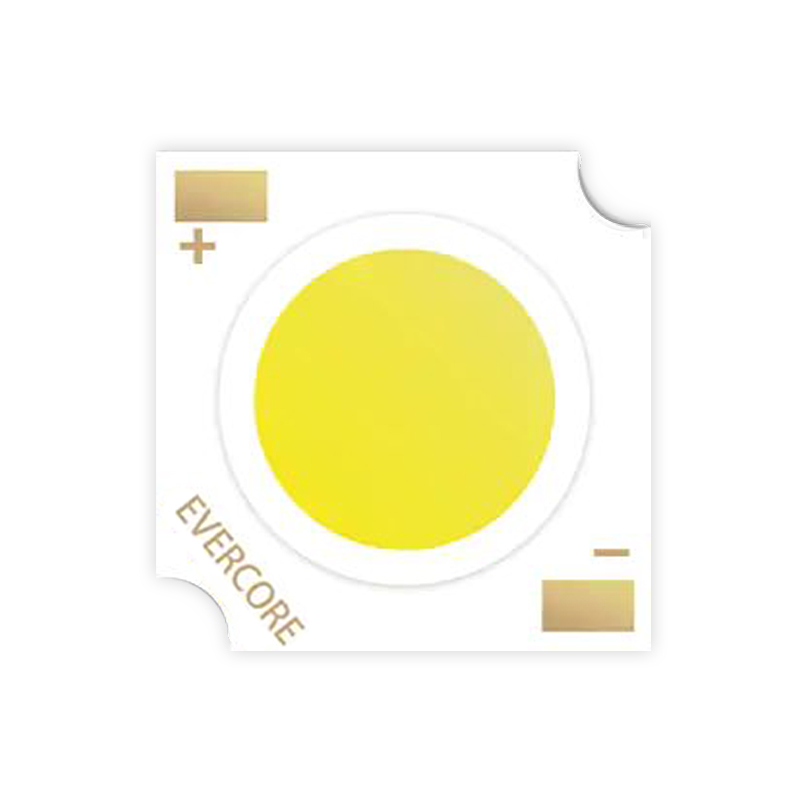

BH1375-Y

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞80 or 90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
BH1375-0112 J5W**-YV3B	Φ6	5	130	200	36	≥80	142	664
						≥90	120	561
BH1375-0212 J7W**-YV3B	Φ6	7	200	400	36	≥80	142	1022
						≥90	120	864

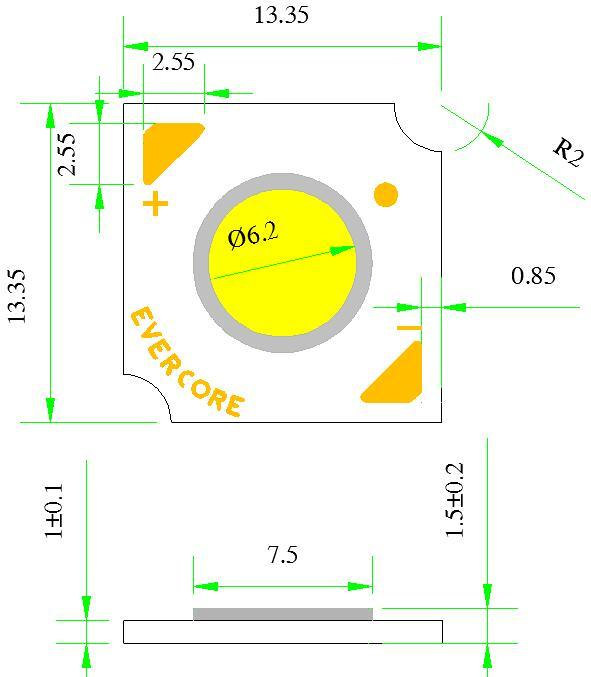

Product dimensions：

BH1375-Y

White bins on CIE-1931：

BH1375-Y

Temperature Vs Lume：

BH1375-Y

TC VS IF curve：

BH1375-Y

BH1375-0112 BH1375-0212

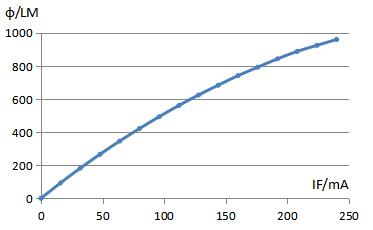

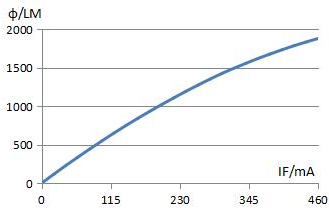

Current Vs Lumen：

BH1375-Y

BH1375-0112 BH1375-0212

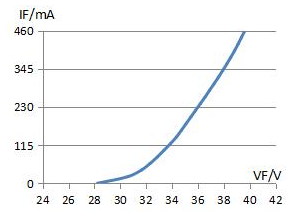

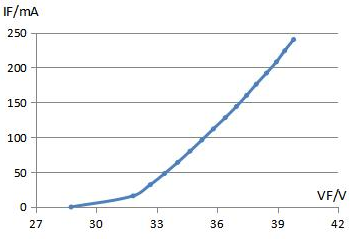

Voltage Vs Current：

BH1375-Y

BH1375-0112 BH1375-0212

Related recommendations

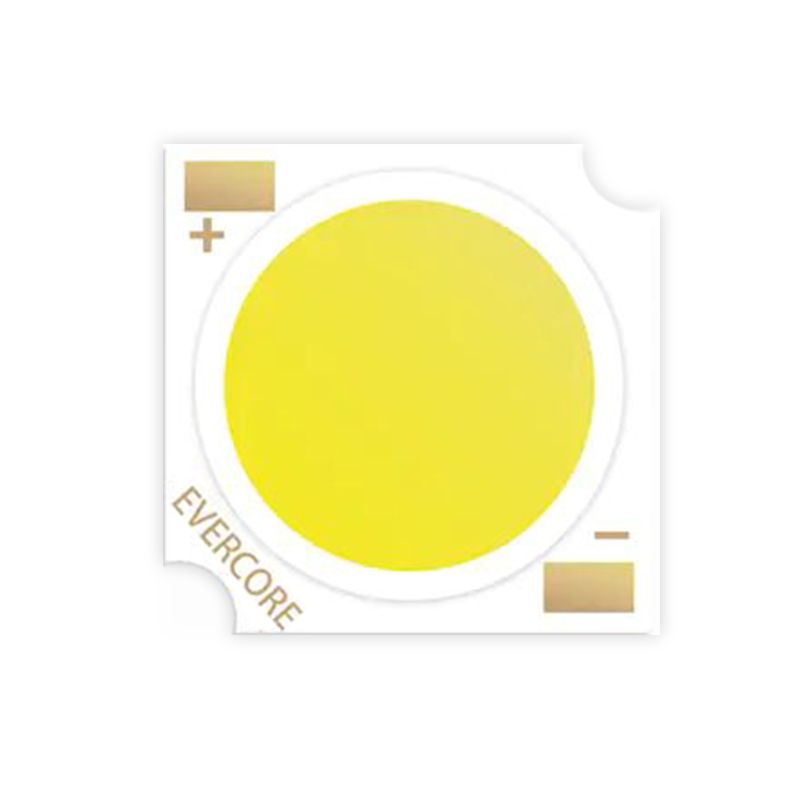

BH1375-S
