BH1917-Y

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞80 or 90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
BH1917-0512 J20W**-YV3B	Φ15	20	550	1000	36	≥80	150	2970
						≥90	130	2574
BH1917-0612 J25W**-YV3B	Φ15	25	700	1200	36	≥80	150	3780
						≥90	129	3250
BH1917-0812 J35W**-YV3B	Φ15	35	950	1600	36	≥80	150	5130
						≥90	129	4411

Product dimensions：

BH1917-Y

White bins on CIE-1931：

Temperature Vs Lume：

BH1917-Y

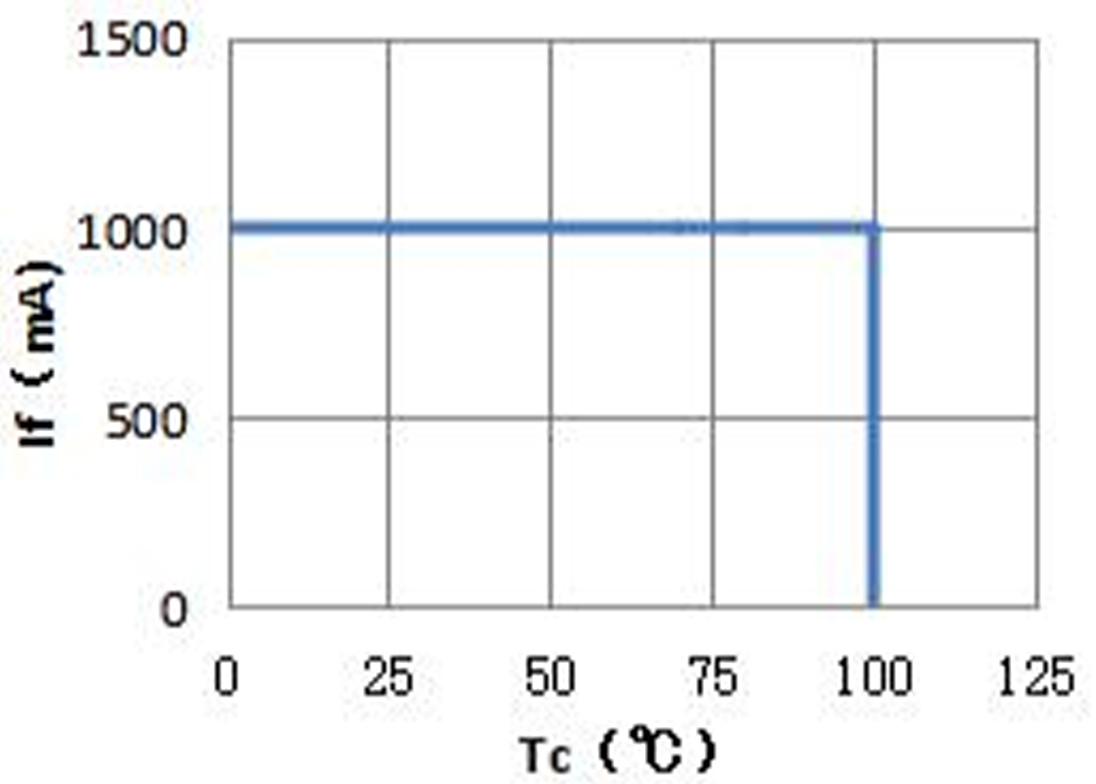

TC VS IF curve：

BH1917-Y

BH1917-0512 BH1917-0612 BH1917-0812

Current Vs Lumen：

BH1917-Y

BH1917-0512 BH1917-0612 BH1917-0812

Voltage Vs Current：

BH1917-Y

BH1917-0512 BH1917-0612 BH1917-0812
