Home > Products > Multi color temperature COB > Dual Color Temperature Series > Dual Color Temperature Series - Constant Current Edition

CK18145-YV3

Product Features:

1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra＞90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment

Product application:

Widely used for high-end hotels, smart homes, high-end commercial space and other places

Product Introduction

Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
（Ra）

Light efficiency
(lm/W)

CK18145-0612

J18WLSH-YV3

Φ13

480

600

2700

≥90

105

480

600

6000

≥90

120

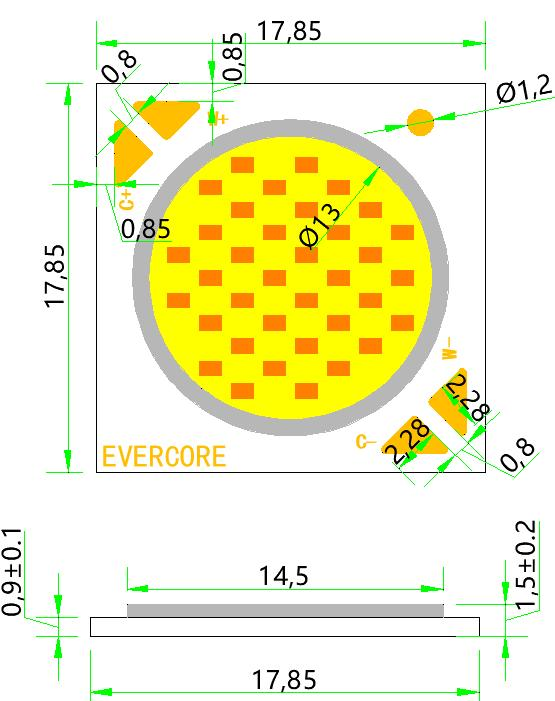

Product dimensions：

CK18145-YV3

White bins on CIE-1931：

CK18145-YV3

Temperature Vs Lume：

CK18145-YV3

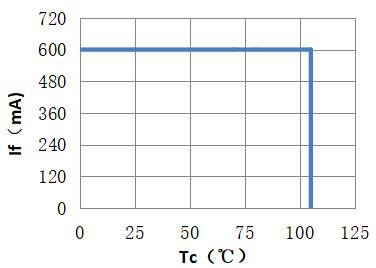

TC VS IF curve：

CK18145-YV3

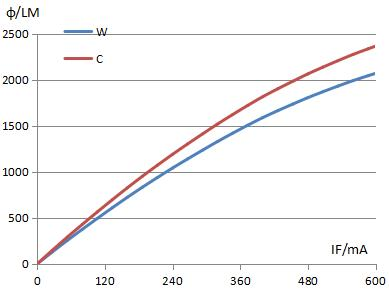

Current Vs Lumen：

CK18145-YV3

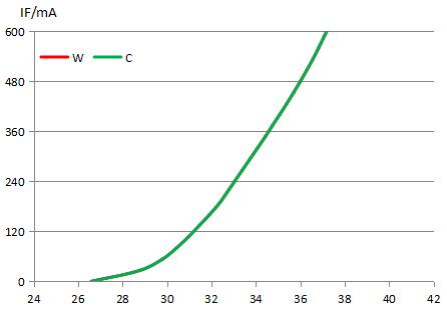

Voltage Vs Current：

CK18145-YV3
